Electronic PCB Prototype Circuit Board and PCB Fabrication

FOB Reference Price:Get Latest Price
$0.10 - $5.00 / Piece | 1 Piece/Pieces (Min. Order)
Samples:
$0.50 /Piece | 1 Piece (Min. Order) | Buy Samples
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
POE
Model Number:
PCBA-1909114
Base Material:
FR4,CEM-1
Copper Thickness:
1 Oz
Board Thickness:
1.6mm
Min. Hole Size:
0.2mm
Min. Line Width:
3mil
Min. Line Spacing:
3mil
Surface Finishing:
HASL,ENIG
Impedence Control Tolerance:
±5%
Certificate:
ROHS,ISO9001,ISO14001,5S,6Q
Plugging Visas capability:
0.2mm-0.8mm
Soldermask Color:
Black,red,blue,yellow,green
profiling punching:
Routing, V-CUT, Beveling
Copper thickness:
0.5-6OZ
PCBA service:
Prototype RoHS PCB Board Manufacturer Custom Printed board
PCB Standard:
IPC-A-610 D/IPC-III Standard
Product name:
Electronic PCB Circuit Board and PCB Fabrication
PCB Assembly Method:
Mixed SMD SMT DIP
Supply Ability
Supply Ability:
2000 Square Meter/Square Meters per Month Electronic PCB Circuit Board and PCB Fabrication
Packaging & Delivery
Packaging Details
Electronic PCB Circuit Board and PCB Fabrication

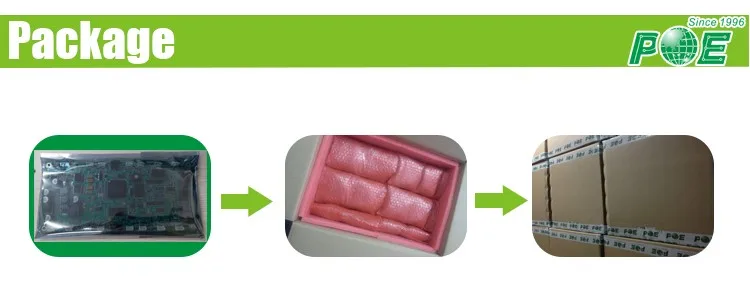

Vacuum package for bare PCB and ESD package for PCBA
Port
Shenzhen
Picture Example:
package-img
package-img
Video Description
Products Description
Item
Capability
Layers
1-22
Base Material
FR4,Aluminum,Rogers,Taconic,Argon,HI-TG,CEM-1,Nalco,Isola and so on
Thicker Copper
0.5-6OZ
Min.hole size
Mechanical hole: 0.15mm
Laser hole: 0.1mm
Controlled Impedance
+/-5%
Plugging vias capability
 0.2-0.8mm
Surface treatment
HASL,HASL lead free,Immersion Gold,Immersion Tin,Immersion Silver,Hard Gold,OSP...
