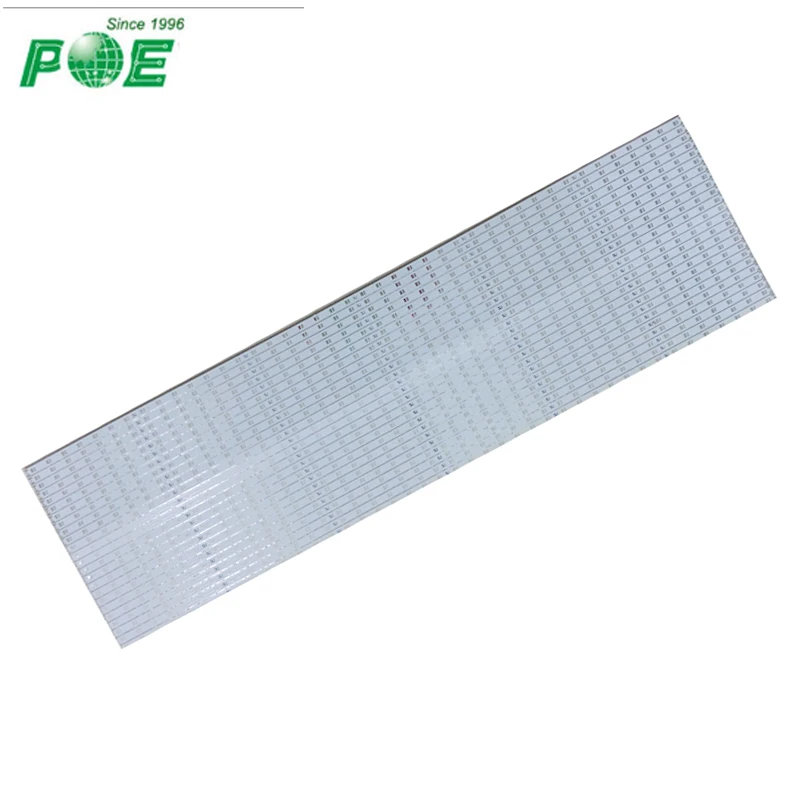

China OEM LED Aluminum Circuit PCB Production For LED PCB Board
Hot sale products
Hot sale in
FOB Reference Price:Get Latest Price
$0.10 - $10.00
/ Piece
| 1 Piece/Pieces (Min. Order)
- Samples:
- Lead Time:
-
Quantity(Pieces) 1 - 100 101 - 1000 >1000 Est. Time(days) 5 8 Negotiable
- Customization:
-
Customized logo (Min. Order: 1 Pieces)Customized packaging (Min. Order: 1 Pieces)
More
Graphic customization (Min. Order: 1 Pieces) Less
Product Details

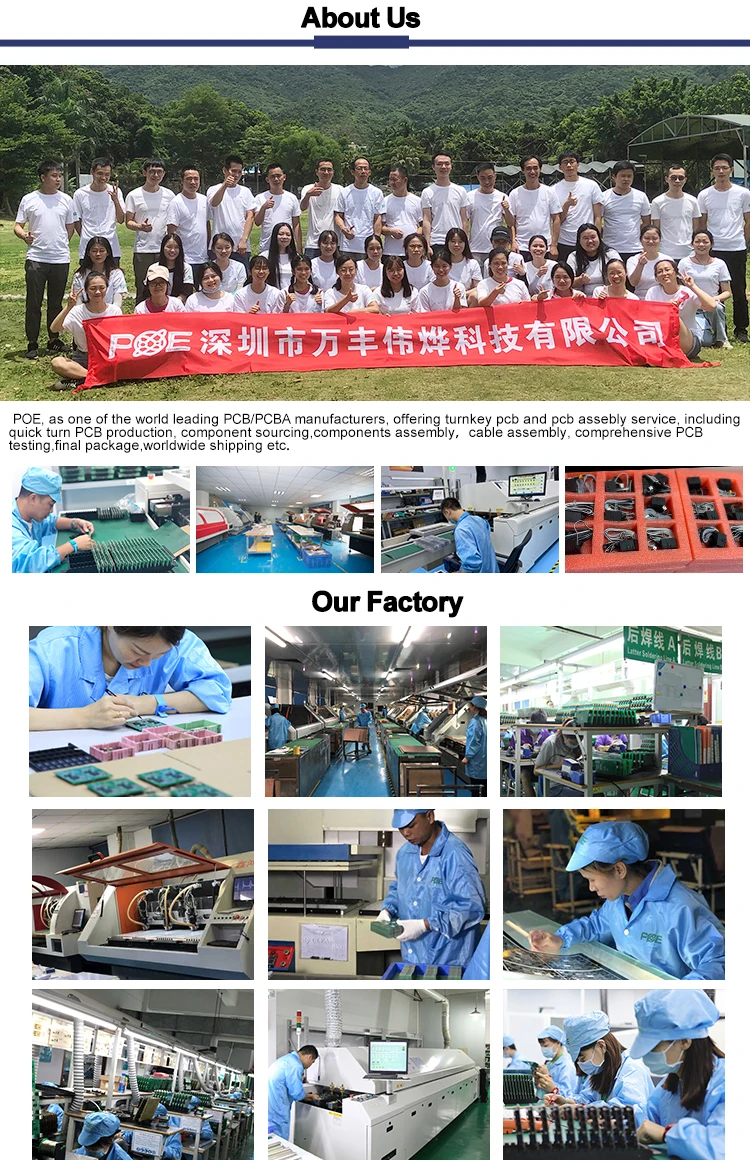

Company Profile
Overview
Quick Details
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
POE
- Model Number:
-
POE-324
- Base Material:
-
Aluminum
- Copper Thickness:
-
1oz/35um
- Board Thickness:
-
1.6mm
- Min. Hole Size:
-
0.2mm
- Min. Line Width:
-
4mil
- Min. Line Spacing:
-
4mil
- Surface Finishing:
-
HASL
- Color:
-
Green,Blue,Black,Red,Yellow,white
- Silkscreen color:
-
White
- Finished board thickness:
-
0.2-7.0mm
- Finised copper thickness:
-
1-6OZ
- PCB Standard:
-
IPC-A-610 D
- Board thickness tolerance:
-
+/-10%
- Hole tolerance:
-
PTH: +/-3mil NPTH: +/-2mil
- Application:
-
Electronics Device
Supply Ability
- Supply Ability:
- 20000 Piece/Pieces per Month China OEM LED Aluminum Circuit PCB Production For LED PCB Board
Packaging & Delivery
- Packaging Details
- PCB: Vacuum Packing with Carton Box
PCBA: ESD Packing with Carton Box
- Port
- Shenzhen/HK

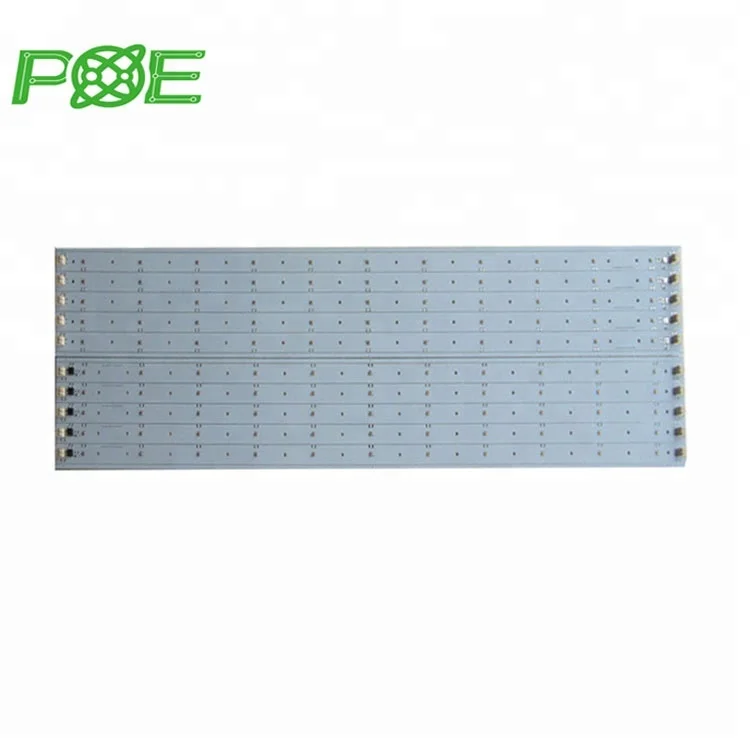

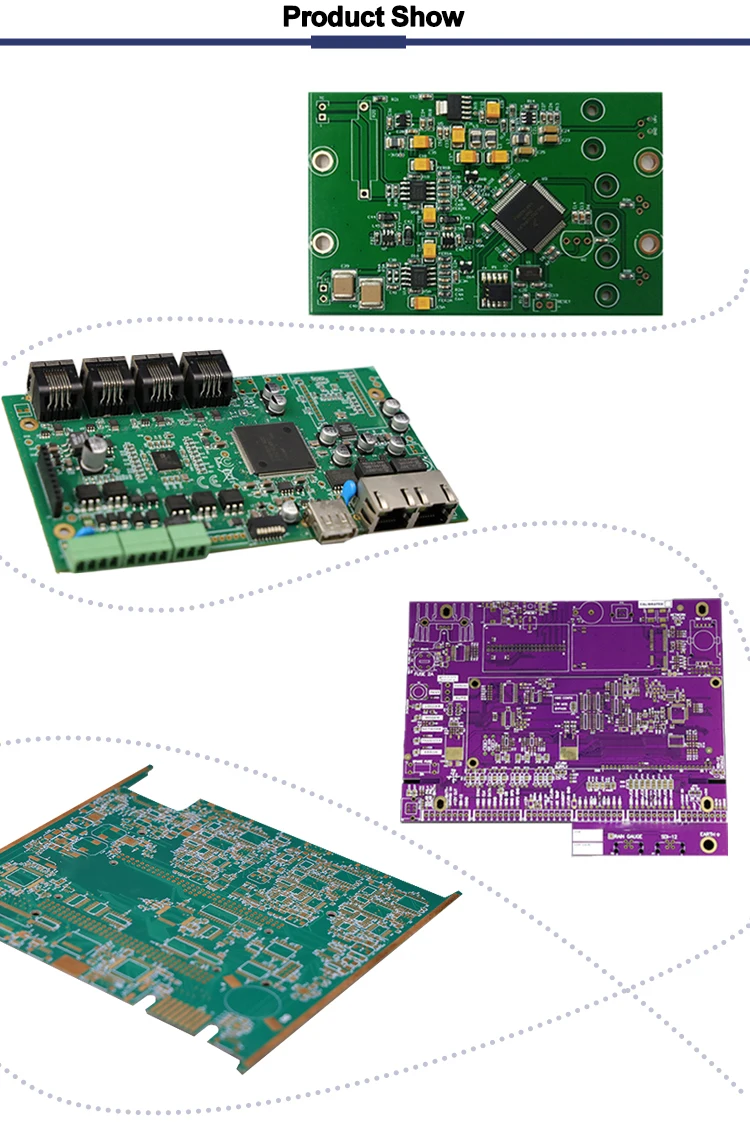

- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 100 101 - 1000 >1000 Est. Time(days) 5 8 To be negotiated
Online Customization
Video Description
Product Description
Company Capability | ||
Layers | 40 Layers | |
Copper Thickness | 0.5-6 OZ | |
Material | FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06,Rogers, Taconic,Argon, Nalco,Isola and so on | |
Solder Mask | green, yellow,white, blue,black,red | |
Finished Surface | conventional hasl, lead free hasl, immersion gold, immersion tin,immersion silver, hard gold, OSP... | |
Silkscreen color | white,black | |
Products Type | HF(High-Frequency)&(Radio Frenquency)board,impendance controlled board, HDI board,BGA&Fine pitch board | |
Minimum line width/gap | 3.5/4mil(laser drill) | |
Minimum hole size | 0.15mm(mechanical drill)/4mil(laser drill) | |
Minimum Annlar Ring | 4mil | |
Max Copper thickness | 6OZ | |
Min Solder Mask Bridge | 0.08mm | |
Plugging Vias capability | 0.2-0.8mm |
