Alibaba China Qualified Street Light Aluminum LED PCB

FOB Reference Price:Get Latest Price
$0.51 - $10.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
POE
Model Number:
PCB-0426
Base Material:
Aluminum
Copper Thickness:
1oz
Board Thickness:
1.5mm
Min. Hole Size:
0.2mm
Min. Line Width:
4mil
Min. Line Spacing:
4mi
Surface Finishing:
HASL
Color:
Green,Blue,Black,Red,Yellow,white
Layers:
1-28
Finished board thickness:
0.2-7.0mm
Finised copper thickness:
1-6OZ
PCB Standard:
IPC-A-610 D
Board thickness tolerance:
+/-10%
Hole tolerance:
PTH: +/-3mil NPTH: +/-2mil
Min distance pad-pad:
8mil
Min distance trace-pad:
8mil
Min distance trace-via:
4mil
Supply Ability
Supply Ability:
40000 Square Meter/Square Meters per Month LED PCB
Packaging & Delivery
Packaging Details
PCB: Vacuum Packing with Carton Box
PCBA: ESD Packing with Carton Box
Port
Shenzhen

      POE has the capability to manufacture pcb ranging from basic single sided boards up to 28 layer multilayers ,and provide one stop turnkey services, including pcb layout, manufacture, assembly, components source and function testing. The superior service we offer our customers is the key to our success and our mission has remained the same since we started business in 1996: to provide high quality, technically advanced products within the customer’s timescales. This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements – from front end engineering through to in time deliveries.



Product Description

Alibaba China Qualified Aluminum LED PCB

♦ Layer: 1 layer

♦ Material: Aluminum

♦ Mini Hole: 0.2mm

♦ Testing point: 1000

♦ Solder mask: LPI White

♦ Function: LED

♦ Thickness: 1.6mm

♦ Copper thickness: 35um

 ♦ Mini Width/space: 4mil/4mil
♦ Finish treatment: HASL
♦ Silkscreen: Black




Company Information
 Production Line

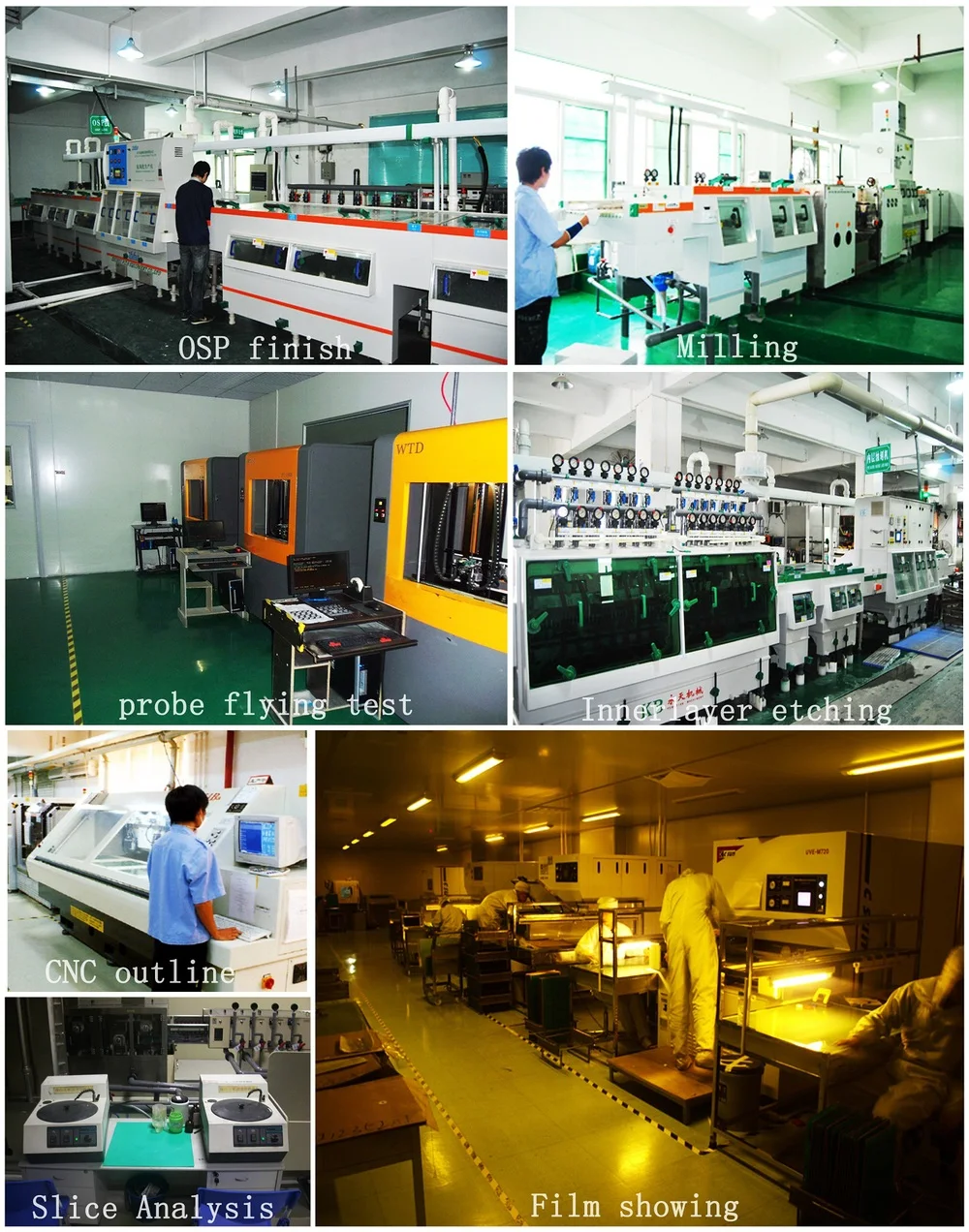

   POE has invested in the best equipment, environment and staff training. We have a production capability for standard and HDI , Rigid, RF and high frequency  PCBs, together with throught hole and min 0201 chips, 0.2mm pitch BGA balls SMD soldering, in small batch, mid volume and high volume quantities.




PCB Showcase




POE Production Capability

Item

Capability

1.Base Material

FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon

2.Layers

1-28

3.Finised inner/outer copper thickness

1-6OZ

4.Finished board thickness

0.2-7.0mm

7.Min hole size

Mechanical hole: 0.15mm               Laser hole: 0.1mm

9.Controlled Impedance

+/-5%

13.Plugging vias capability

0.2-0.8mm

15.Outline profile

Rout/ V-cut/ Bridge/ Stamp hole

16.Surface treatment

HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS…





Our equipments

1.Drilling workshop

4 drilling bits of drilling machine: 4 sets

2 drilling bits of drilling machine: 2 sets

2. photo plotting workshop

Israel “ORBOTECH” Photo Plotters

3.AOI

AOI machine

4.IPQC

“OXFORD” CMI 700 Copper Thickness Tester

5.Impedance test

USA “Tektronix” DSA 8200 Impedance Tester

6.Outline workshop

CNC routing machine: 7 sets

angle-cutting machine

V-cut machine

7.Testing Workshop

Surpass X-600: 2sets

WTD FT-2808: 5sets

WTD HV300: 1set

8.X-ray

X-ray machine







Production Time


PCB

Layer

Quick Turn/Usual Time

Mass production

2L

24hours/ 4-5days

8-10days

4L

48hours/ 6-7days

10-12days

6L

72hours/ 7-8days

12-14days

8L

72hours/ 8-10days

 16-18days

10L

96hours/ 12-14days

18-20days

...

...

...



PCB Assembly

Quantity

Usual Time

<20pcs

2days

20-100pcs

3days

100-1000pcs

6days

>1000pcs

Depend on BOM







Application Fields

 We produce PCBs for our customers working in frequency ranges from LED products to communication equipments and in industries as diverse as Medical devices through to automotive, aerospace and Bluetooth etc.



FAQ

Q1.What is needed for quotation?

  • PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
  • PCBA: PCB information, BOM, (Testing documents...)

Q2. What file formats do you accept for production?

  • Gerber file: CAM350 RS274X
  • PCB file: Protel 99SE,  P-CAD 2001 PCB
  • BOM: Excel (PDF,word,txt)

Q3. Are my files safe?

    Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
