OEM customized pcb printed circuit board of ups circuit board

FOB Reference Price:Get Latest Price
$0.50 - $15.00 / Piece | 1 Piece/Pieces (Min. Order)
Samples:
$1.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 1 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
POE
Model Number:
PCB-040296
Base Material:
fr4
Copper Thickness:
1OZ
Board Thickness:
1.6mm
Min. Hole Size:
0.2mm
Min. Line Width:
4mil
Min. Line Spacing:
4mil
Surface Finishing:
Hasl lead free
layer:
6
color:
Green
Hole tolerance:
PTH: +/-3mil NPTH: +/-2mil
Impedence Control Tolerance:
±5%
Board thickness tolerance:
+/-10%
Plugging Vias Capability:
0.2-0.8mm
PCB Standard:
IPC-A-610 D
Service:
PCB&PCBA
Inner package:
vacuum package
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week

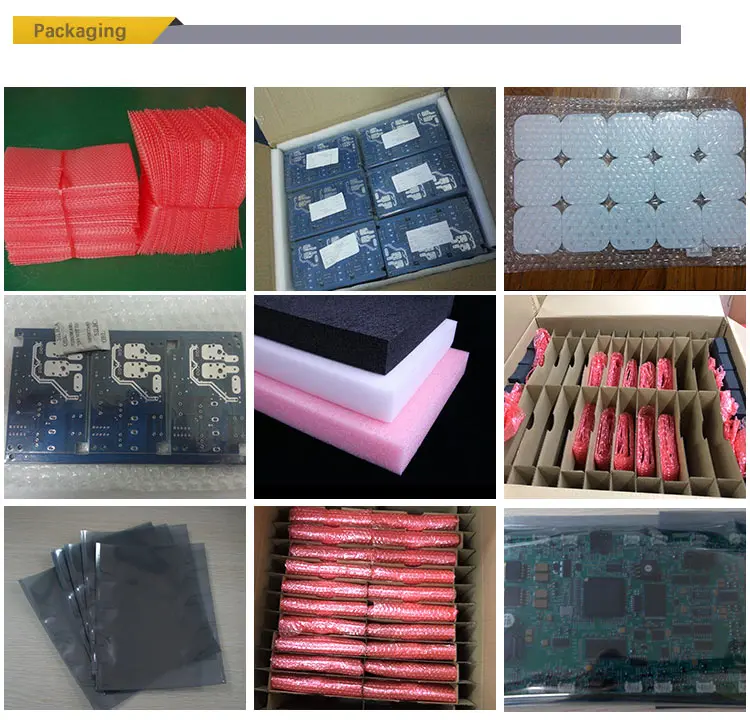

Packaging & Delivery
Packaging Details
PCB: Vacuum Packing with Carton Box
PCBA: ESD Packing with Carton Box
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 1 To be negotiated
Video Description
Company Capability
Layers
1-40 layers
Copper Thickness
0.5-6 OZ
Material
FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06,Rogers, Taconic,Argon,
Nalco,Isola and so on
Solder Mask
green, yellow,white, blue,black,red
Finished Surface
conventional hasl, lead free hasl, immersion gold, immersion tin,immersion silver, hard gold, OSP...
Silkscreen color
white,black
Minimum line width/gap
3.5/4mil(laser drill)
Minimum hole size
0.15mm(mechanical drill)/4mil(laser drill)
Minimum Annlar Ring
4mil
Max Copper thickness
6OZ
Min Solder Mask Bridge
0.08mm
Plugging Vias capability
0.2-0.8mm
