China FPC flexible pcb
Hot sale products
Hot sale in
FOB Reference Price:Get Latest Price
$0.51 - $8.00
/ Piece
| 1 Piece/Pieces (Min. Order)
- Samples:
- Lead Time:
-
Quantity(Pieces) 1 - 10 11 - 100 101 - 500 >500 Est. Time(days) 5 7 12 Negotiable
- Customization:
-
Customized logo (Min. Order: 1 Pieces)Customized packaging (Min. Order: 1 Pieces)
More
Graphic customization (Min. Order: 1 Pieces) Less
Product Details
Company Profile
Overview
Quick Details
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
POE
- Model Number:
-
FPC-3717
- Base Material:
-
polyimide
- Copper Thickness:
-
35um
- Board Thickness:
-
0.2mm
- Min. Hole Size:
-
0.2mm
- Min. Line Width:
-
0.1mm
- Min. Line Spacing:
-
0.1mm
- Surface Finishing:
-
immersion gold
- Board Size:
-
customized
- Solder mask:
-
yellow
- Impedence Control Tolerance:
-
±5%
- Certificate:
-
ISO,SGS and ROHS
- Inner package:
-
vacuum package
- Service:
-
PCB&PCBA
- Shipping:
-
DHL UPS TNT Fedex
- Plugging Vias Capability:
-
0.2-0.8mm
- Board thickness tolerance:
-
±10%
- Finished copper thickness:
-
1--6OZ
- Product name:
-
China FPC flexible pcb
Supply Ability
- Supply Ability:
- 20000 Piece/Pieces per Week
Packaging & Delivery
- Packaging Details
- CNC package for bare PCB and ESD package for PCBA aasemble with POE box Package
China FPC flexible pcb
- Port
- Shenzhen

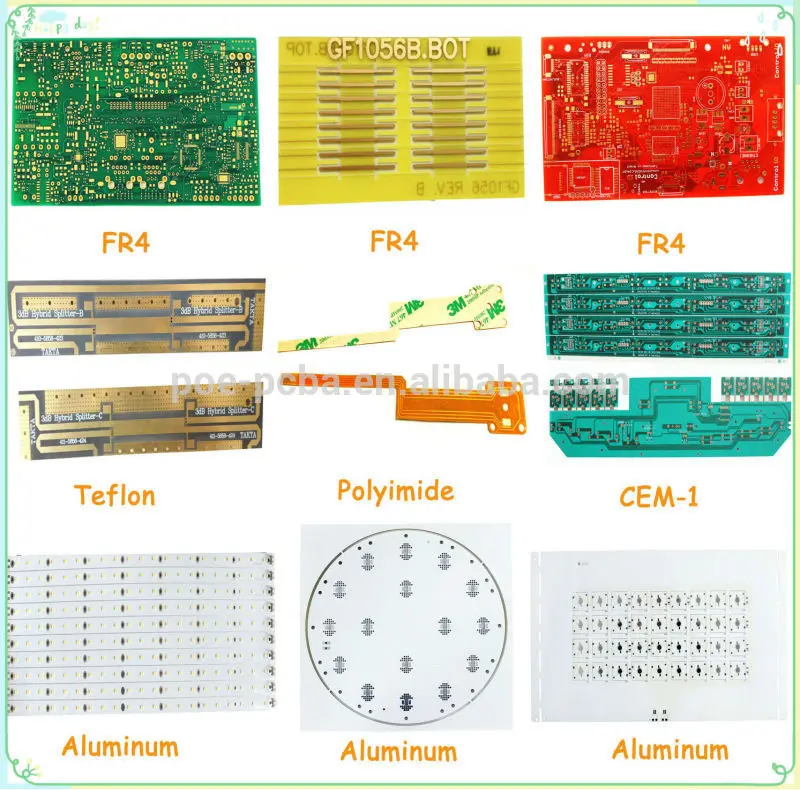

- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 10 11 - 100 101 - 500 >500 Est. Time(days) 5 7 12 To be negotiated
Online Customization
Video Description
POE PCB Capacity
ITEM | Capability |
Layers | 1--22 |
Copper thickness | 1--6OZ |
Base material | FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06, Rogers, Taconic,Argon,Nalco,Isola and so on |
Finished surface | conventional hasl, lead free hasl, immersion gold, immersion tin, immersion silver, hard gold, OSP... |
Soldermask | green, black, yellow, white, blue, red...... |
Finished board thickness | 0.2-7.0mm |
Board thickness tolerance | Board thickness≤1.0mm: +/-0.1mm 1<Board thickness≤2.0mm: +/-10% Board thickness>2.0mm: +/-8% |
Multilayer manufacture process
PLEASE CLICK HERE>>>>>>CONTACT US FOR MORE DISCOUNTS.
DON'T HESITATE TO SEND AN INQUIRY TO US, WE WILL RESPONSE YOU IN 24 HOURS:)
POE Quality Control
- ISO9001:2008 Quality Management
- 100% Incoming Inspection by IQC
- 100%AOI Inspection for inner layers
- Copper thickness measured by OXFORD
- 100% Dry Film and Solder Mask Touch UP
- IPC-600G classⅡand IPC-6012B classⅡstandards

Leadtime for bare PCB
Layer | Quick Turn/Usual Time | Mass production |
2L | 24hours/ 4-5days | 8-10days |
4L | 48hours/ 6-7days | 10-12days |
6L | 72hours/ 8-10days | 12-14days |
8L | 72hours/ 7-8days | 16-18days |
10L | 96hours/ 12-14days | 18-20days |
... | ... | ... |
PLEASE CLICK HERE>>>>>>CONTACT US FOR MORE DISCOUNTS.
DON'T HESITATE TO SEND AN INQUIRY TO US, WE WILL RESPONSE YOU IN 24 HOURS:)
Production line
POE package
PLEASE CLICK HERE>>>>>>CONTACT US FOR MORE DISCOUNTS.
DON'T HESITATE TO SEND AN INQUIRY TO US, WE WILL RESPONSE YOU IN 24 HOURS:)
